GPV-100-12 100W 12V 8,3A LED power supply Transformer Driver IP67
No longer available
Article-No.:
IT-007208
Model:
GPV-100-12
Shipping weight:
0.62 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
Product description
| ✔ Constant voltage power supply |
| ✔ Universal input 115V/230V |
| ✔ protected against short circuit, overcurrent, overvoltage and high temperature |
| ✔ Cooling by free air circulation |
| ✔ Insulation class II |
| ✔ Class II power supply |
| ✔ fully encapsulated IP67 housing |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 8,3A |
| Power: | 100W |
| Input voltage (min...max): | 90...264VAC |
| Efficiency: | 87% |
| Protection class: | IP67 |

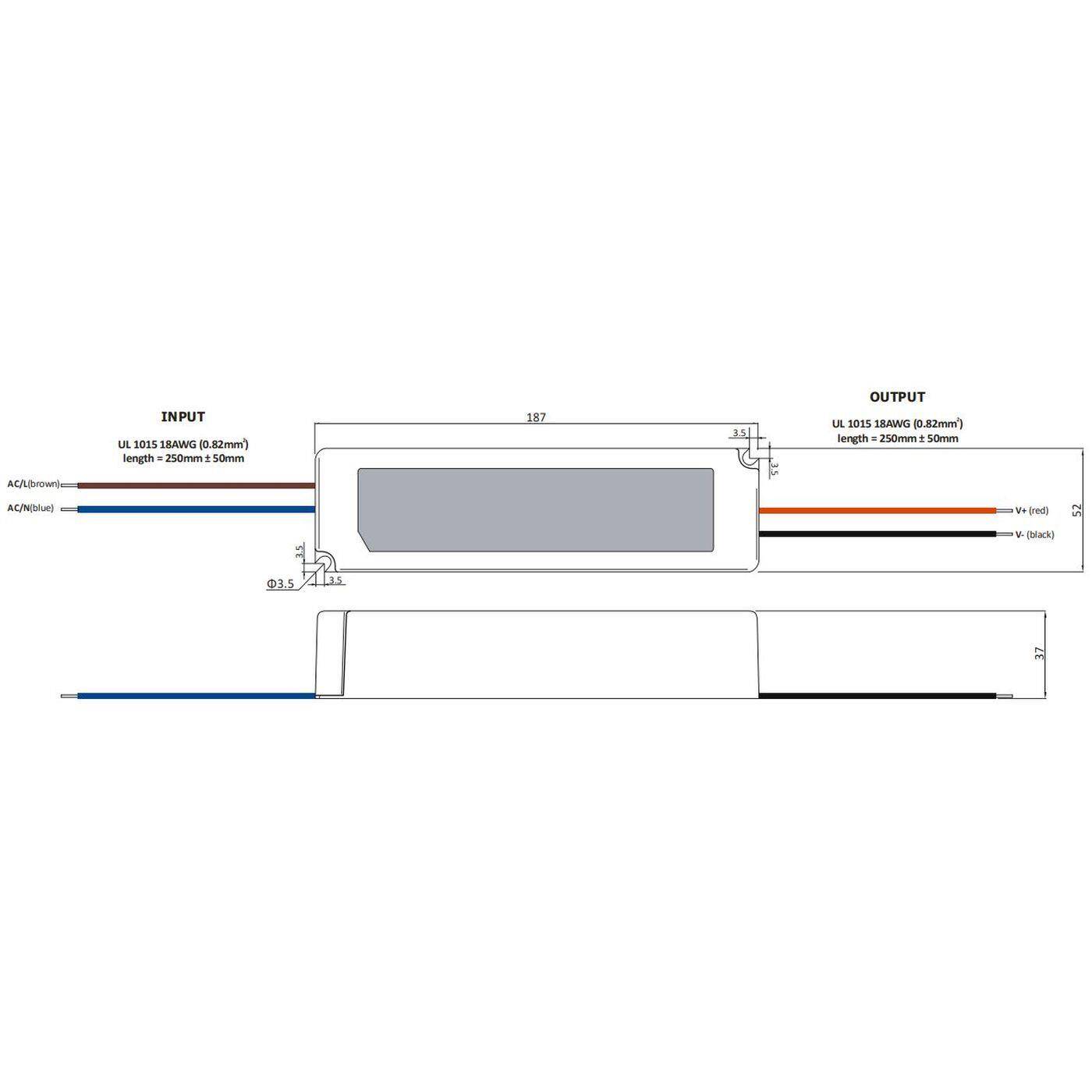

| Input connection: | Cable: 2x25cm |
| Connection Output: | Cable: 2x25cm |
| Length: | 187mm |
| Width: | 52mm |
| Height: | 37mm |
