LED transformer BLV-100-24 24V 100W Input 220-230VAC flicker-free Overload protection LED power supply unit for LED lighting
Available, delivery time: 1-3 days
Article-No.:
IT-010396
Model:
BLV-100-24
Shipping weight:
0.357 kg
Shipping Zone:
50
ROHS:
Ja
Product description

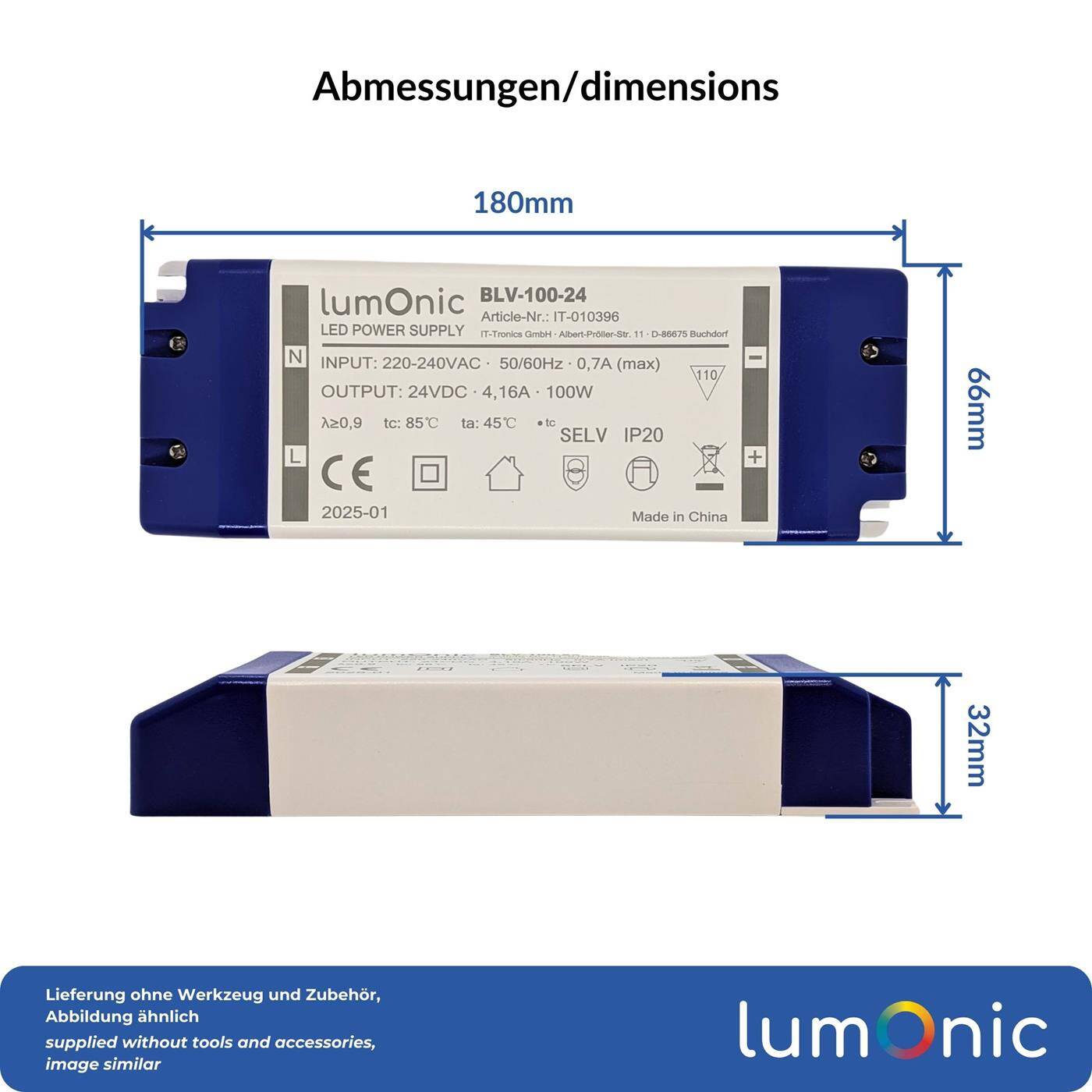

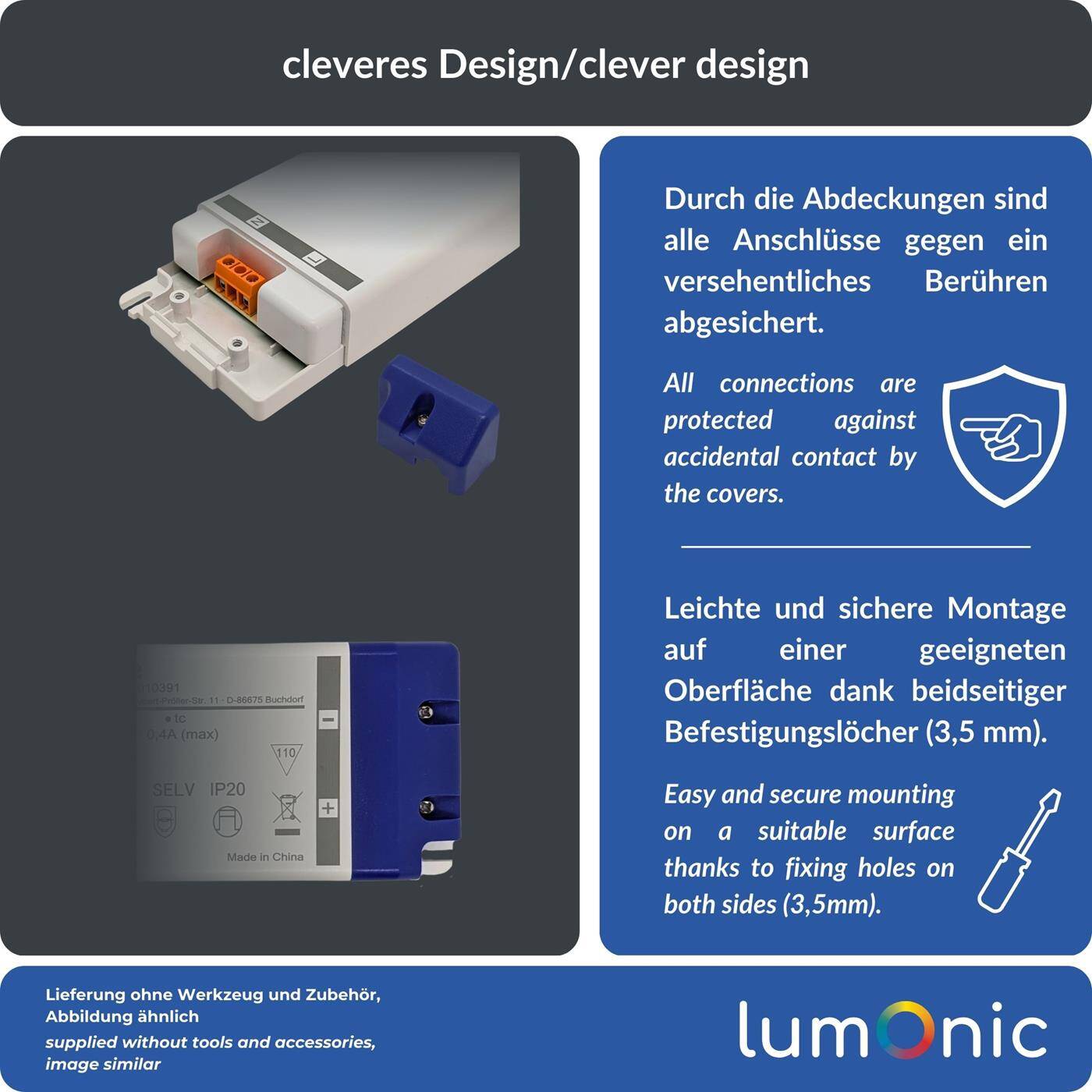

| ✔ COMPACT DESIGN: Our BLV series LED transformer is characterized by its compact dimensions of 180x66x32mm. It is mounted on a suitable surface using practical fixing holes, while the electrical connection is made via screw terminals. These are protected against contact by a cover. |
| ✔ RELIABLE PERFORMANCE: The power supply unit delivers a constant voltage of 24V with an output of up to 100W (max. 4.17A) as soon as it is switched on. Perfect for the reliable operation of LED strips, recessed lights, aquarium lighting and decorative lighting systems. |
| ✔ FLICKER-FREE AND EFFICIENT: The high-quality and noiseless electronics of the transformer guarantee flicker-free operation of your LEDs and impress with an efficiency of 92% as well as a ripple and noise value of 200mVp-p. |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 24V |
| Output current: | 4,17A |
| Power: | 100W |
| Input voltage (min...max): | 198...264VAC |
| Efficiency: | 92% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
| Length: | 180mm |
| Width: | 66mm |
| Height: | 32mm |
