LED transformer BLV-15-12 12V 15W Input 220-230VAC flicker-free Overload protection LED power supply unit for LED lighting
Available, delivery time: 1-3 days
Article-No.:
IT-010385
Model:
BLV-15-12
Shipping weight:
0.065 kg
Shipping Zone:
50
ROHS:
Ja
Product description

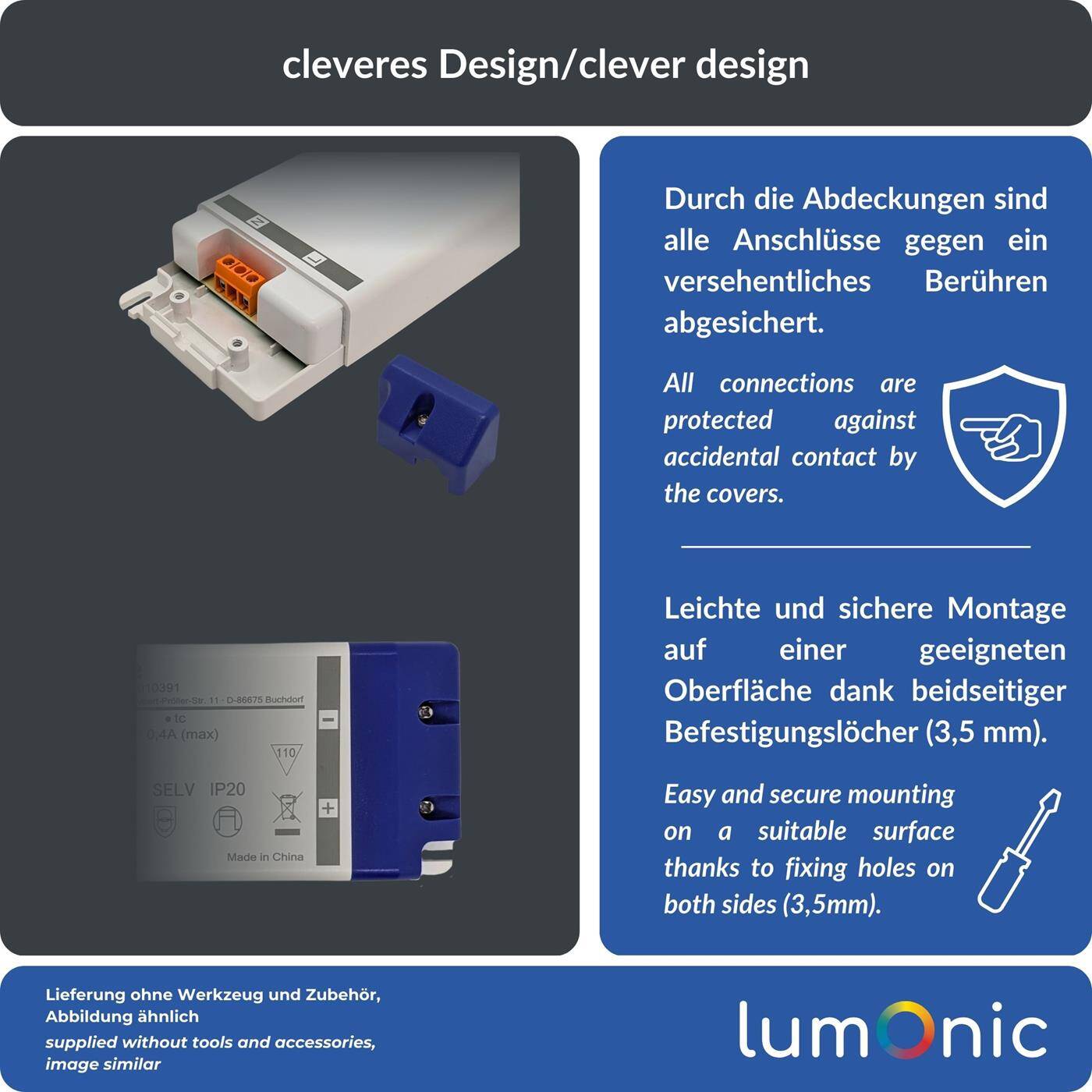

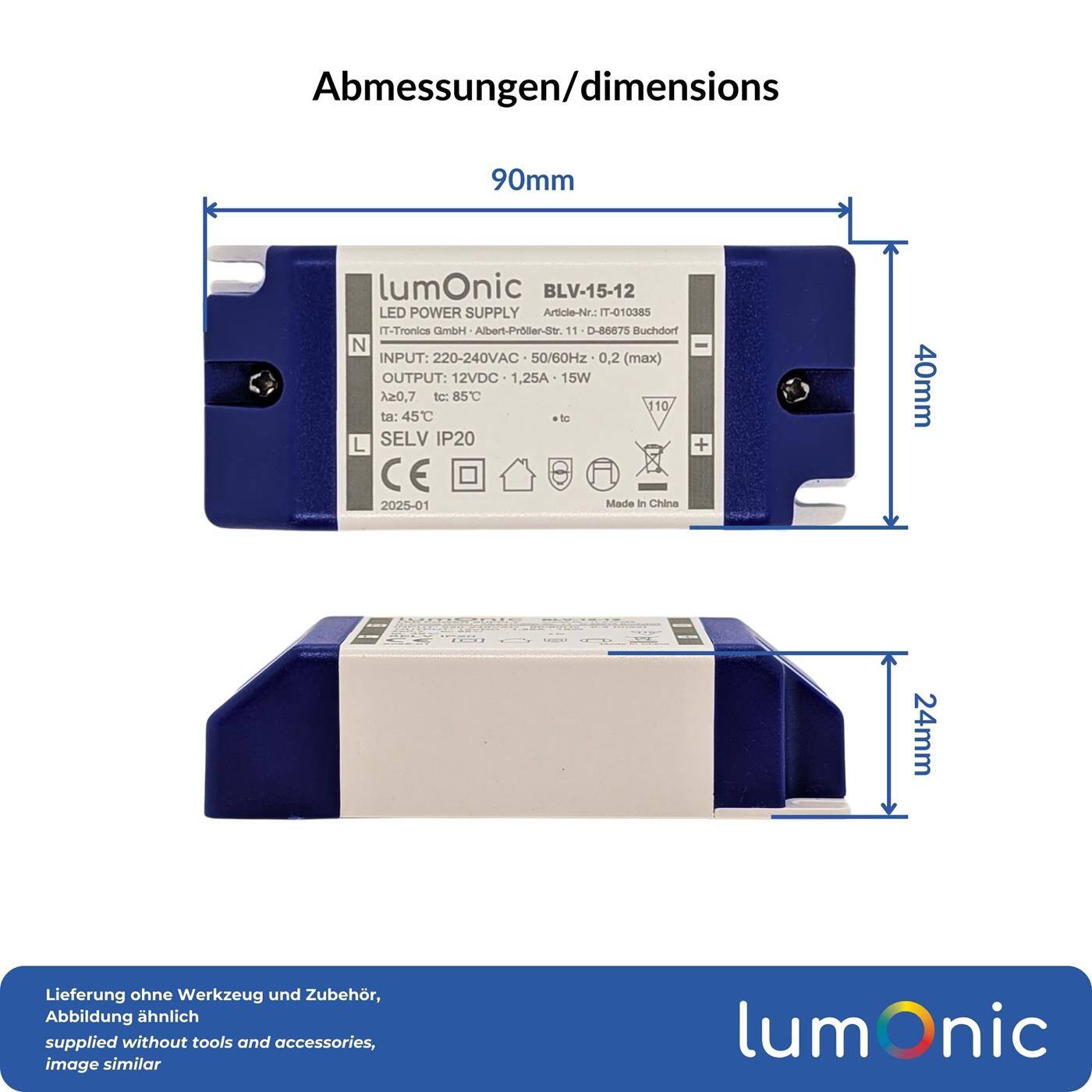

| ✔ COMPACT DESIGN: Our BLV series LED transformer is characterized by its compact dimensions of 90x40x24mm. It is mounted on a suitable surface using practical fixing holes, while the electrical connection is made via screw terminals. These are protected against contact by a cover. |
| ✔ UNIVERSALLY APPLICABLE: Thanks to the input voltage range of 220-240VAC (50/60Hz), the power supply unit is suitable for common domestic installations. The permissible ambient temperature of between -20°C and 45°C enables a wide range of applications. |

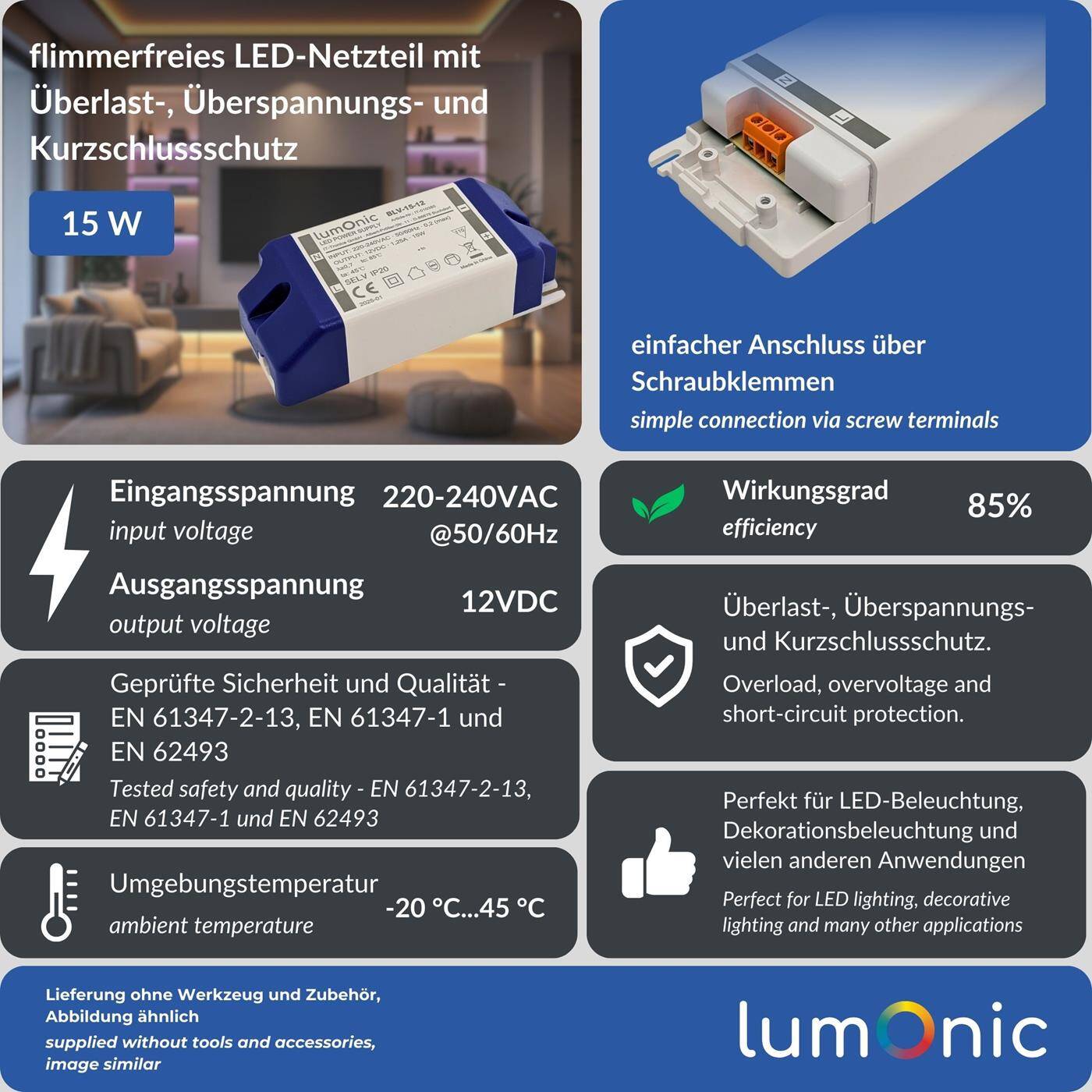

| ✔ FLICKER-FREE AND EFFICIENT: The high-quality and noiseless electronics of the transformer guarantee flicker-free operation of your LEDs and impress with an efficiency of 85% as well as a ripple and noise value of 400mVp-p. |
| ✔ TESTED SAFETY: The short-circuit-proof IP20 power supply unit has overvoltage and overload protection. The device is also CE/EN-certified (EN61347-2-13:2014 A1:2017,EN61347-1:2015 |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 12V |
| Output current: | 1,25A |
| Power: | 15W |
| Input voltage (min...max): | 198...264VAC |
| Efficiency: | 85% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
| Length: | 90mm |
| Width: | 40mm |
| Height: | 24mm |
