LED transformer BLV-60-24 24V 60W Input 220-230VAC flicker-free Overload protection LED power supply unit for LED lighting
Available, delivery time: 1-3 days
Article-No.:
IT-010392
Model:
BLV-60-24
Shipping weight:
0.198 kg
Shipping Zone:
50
ROHS:
Ja
Product description

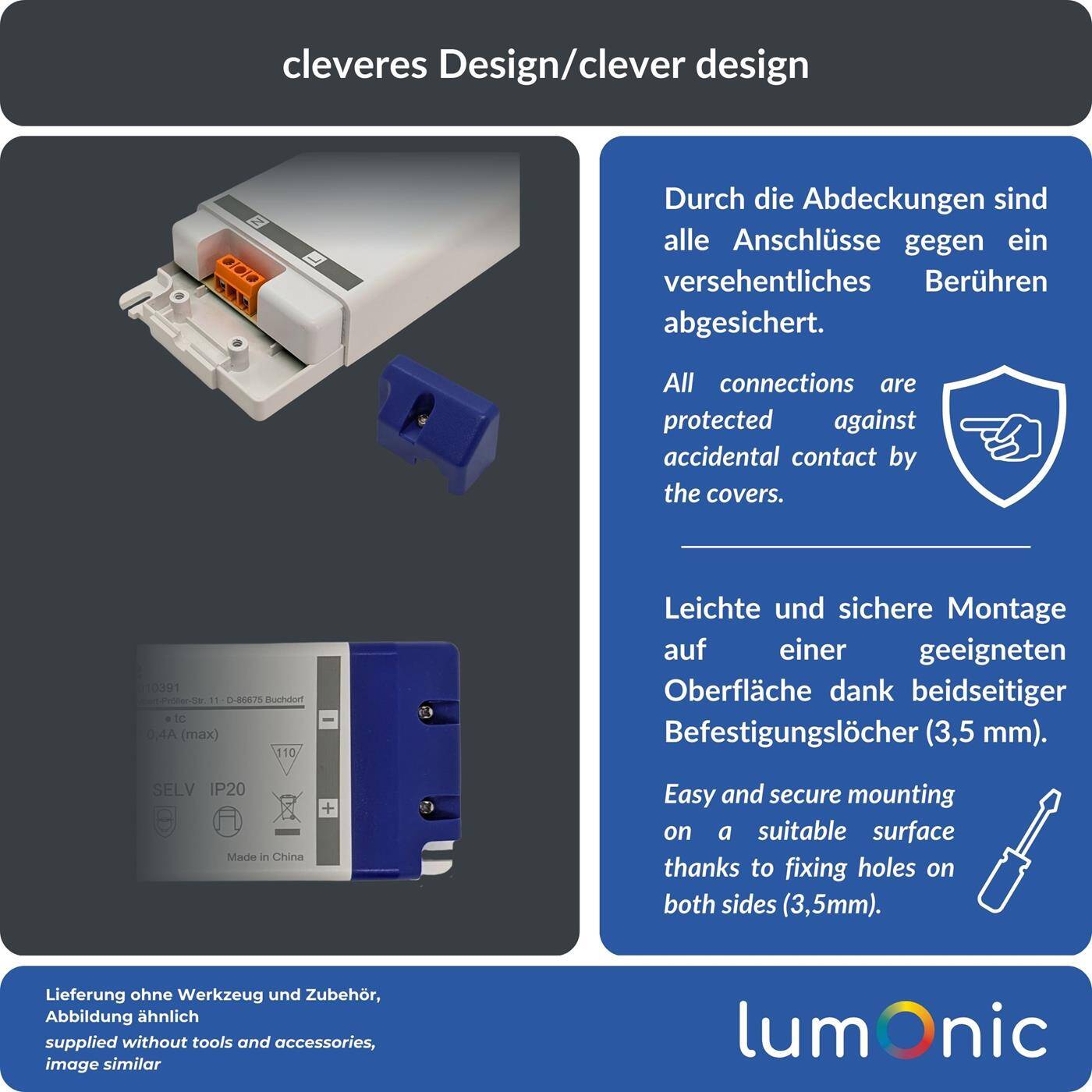

| ✔ COMPACT DESIGN: Our BLV series LED transformer is characterized by its compact dimensions of 185x64x22mm. It is mounted on a suitable surface using practical fixing holes, while the electrical connection is made via screw terminals. These are protected against contact by a cover. |

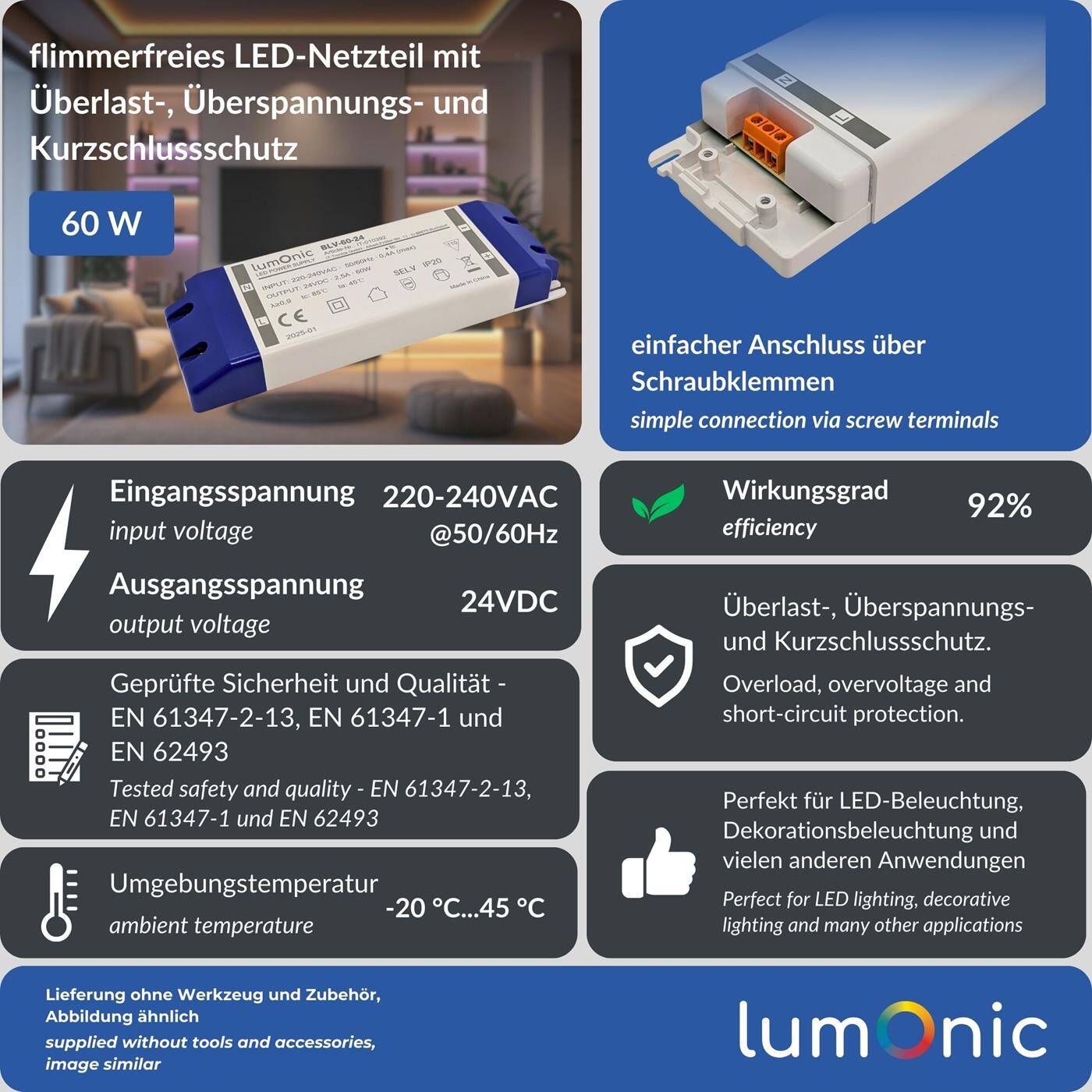

| ✔ RELIABLE PERFORMANCE: The power supply unit delivers a constant voltage of 24V with an output of up to 60W (max. 2.5A) as soon as it is switched on. Perfect for the reliable operation of LED strips, recessed lights, aquarium lighting and decorative lighting systems. |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 24V |
| Output current: | 2,5A |
| Power: | 60W |
| Input voltage (min...max): | 198...264VAC |
| Efficiency: | 92% |

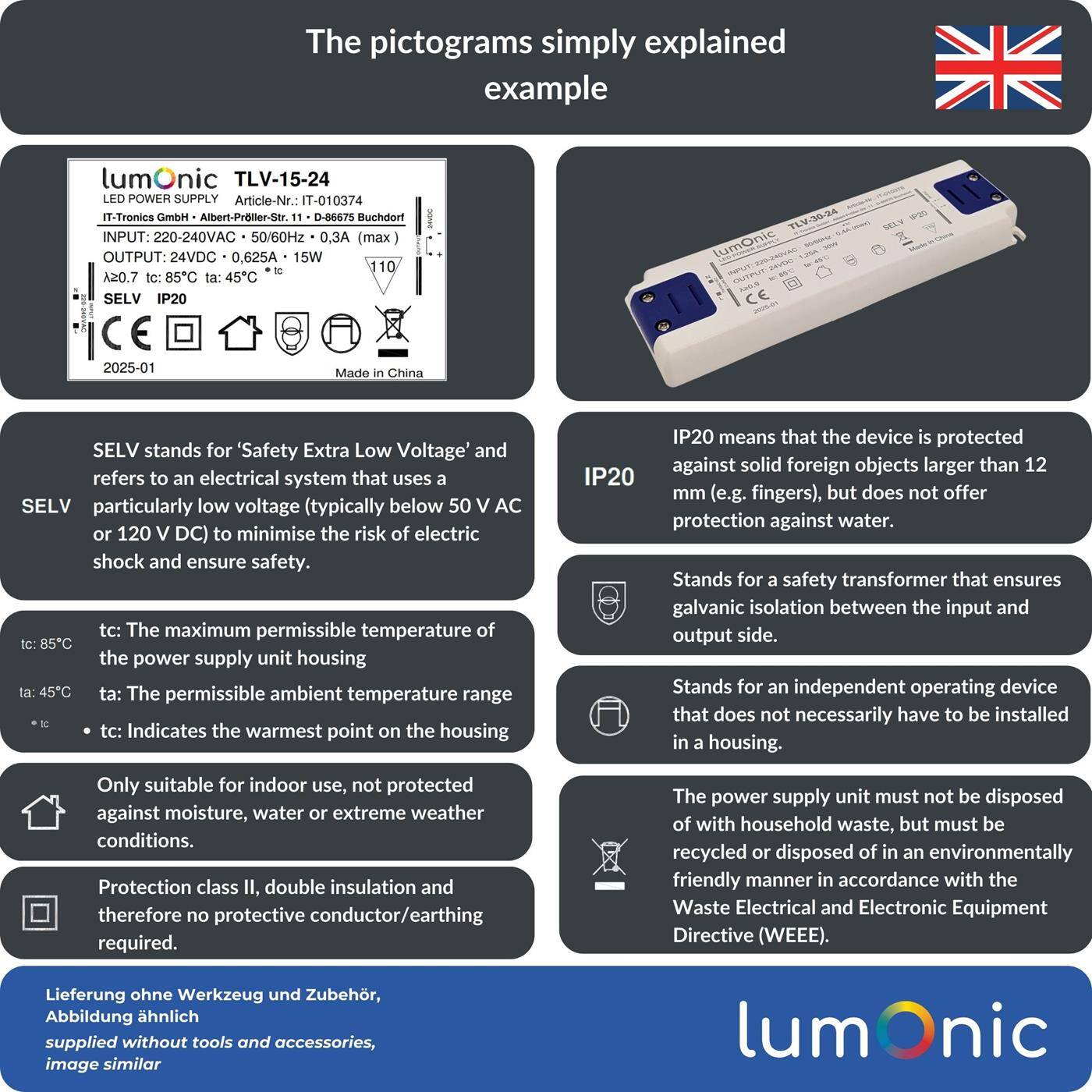

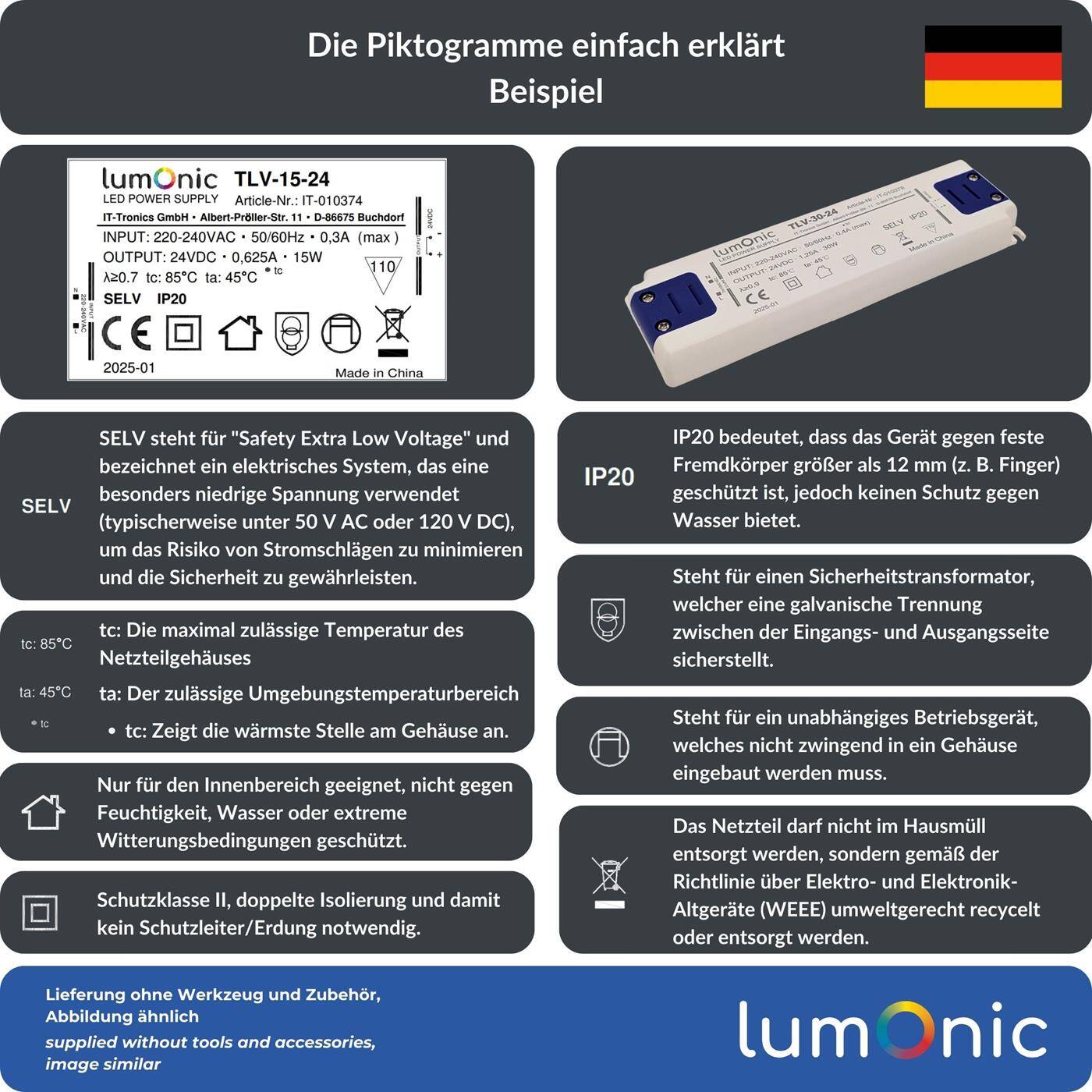

| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

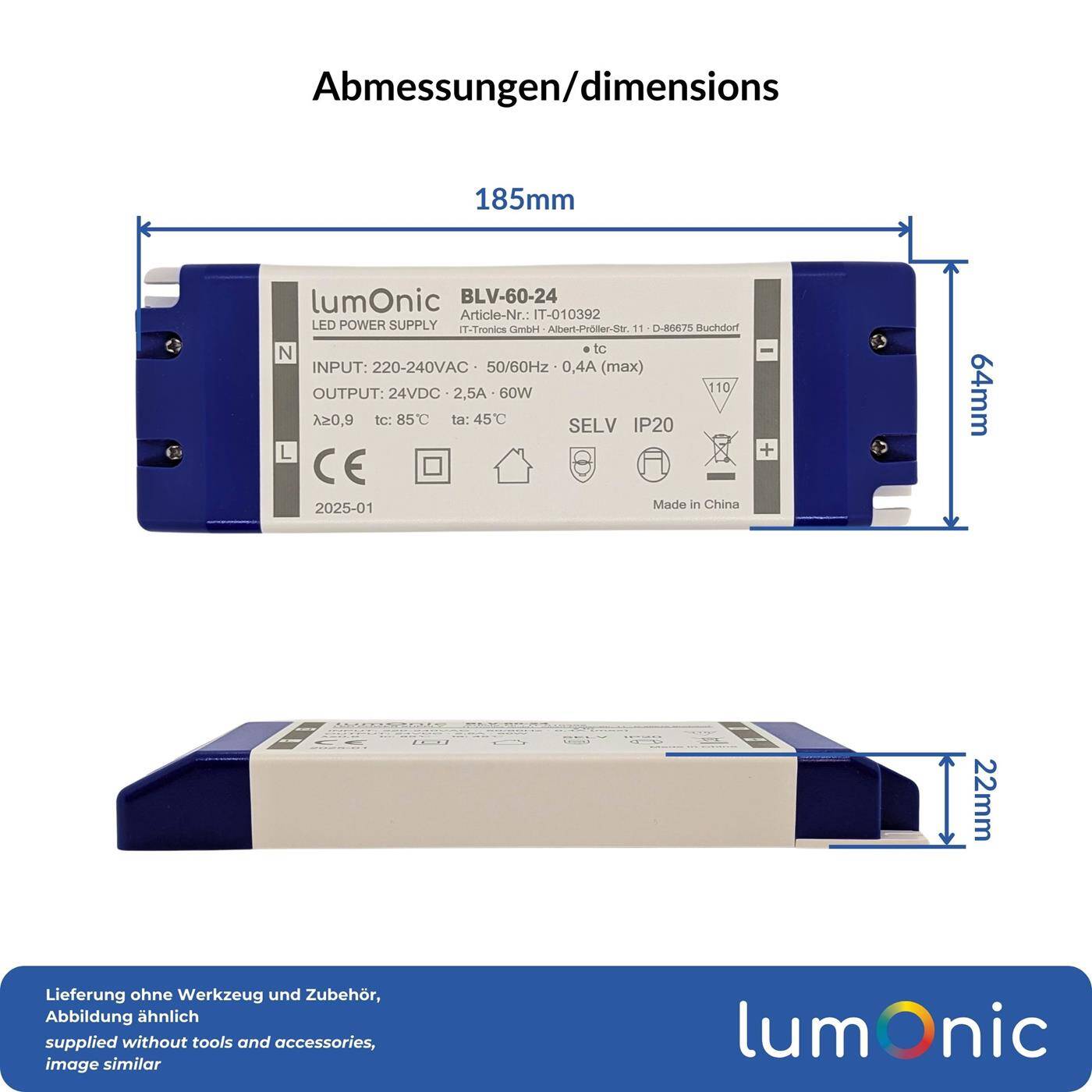

| Length: | 185mm |
| Width: | 64mm |
| Height: | 22mm |
