LED transformer TLV-20-12 12V 20W Input 220-240VAC flicker-free Overload protection LED power supply unit for LED lighting
Available, delivery time: 1-3 days
Article-No.:
IT-010375
Model:
TLV-20-12
Shipping weight:
0.09 kg
Shipping Zone:
30
ROHS:
Ja
Product description

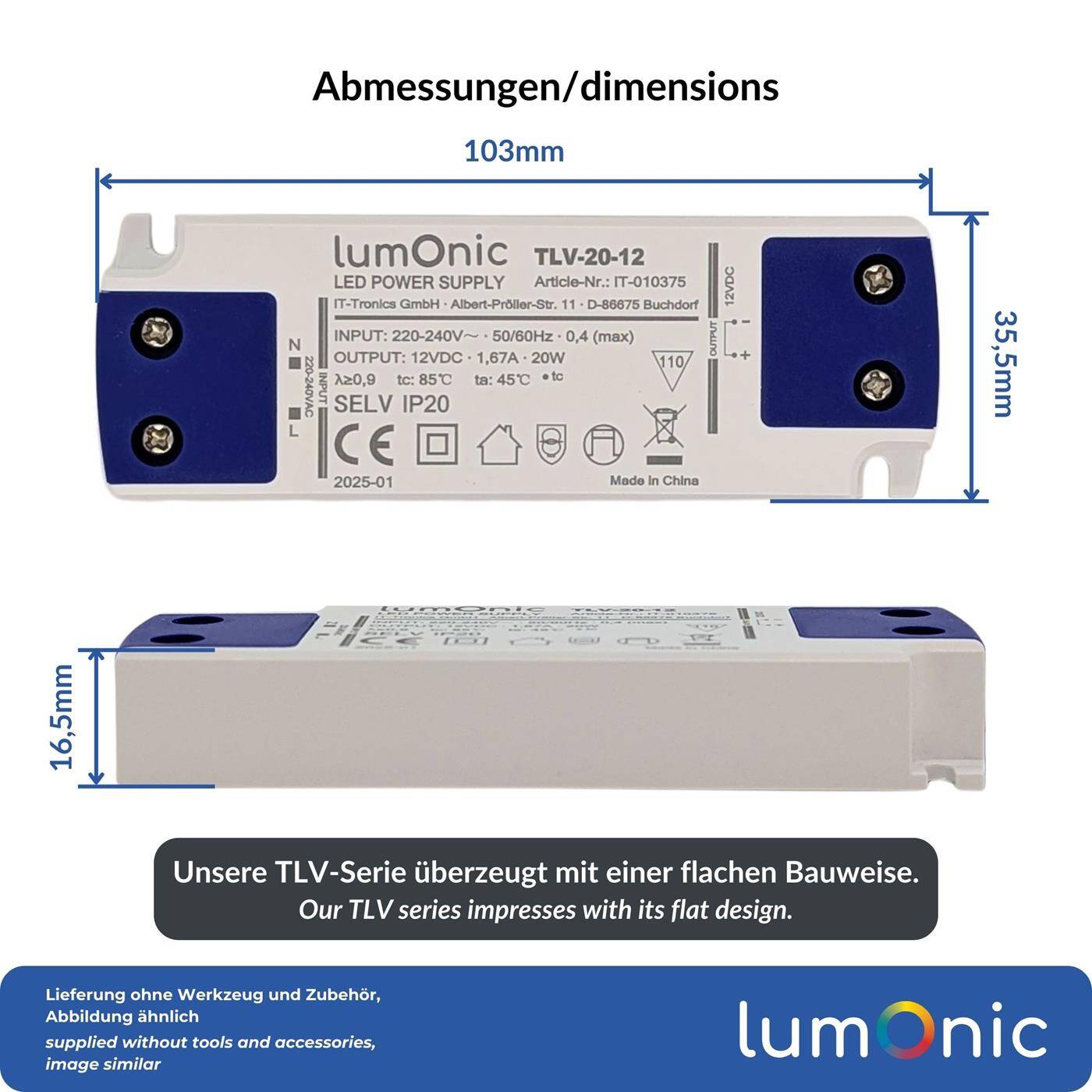

| ✔ ultra-thin design: Our TLV series LED transformer is characterized by a flat design and compact dimensions of 103x35.5x16.5mm. It is mounted on a suitable surface using practical mounting holes, while the electrical connection is established via screw terminals. These are protected against contact by a cover. |
| ✔ RELIABLE PERFORMANCE: The power supply delivers a constant voltage of 12V with an output of up to 20W (max. 1.67A) as soon as it is switched on. Perfect for the reliable operation of LED strips, recessed lights, aquarium lighting and decorative lighting systems. |
| ✔ UNIVERSALLY APPLICABLE: Thanks to the input voltage range of 220-240VAC (50/60Hz), the power supply unit is suitable for common domestic installations. The permissible ambient temperature of between -20°C and 45°C enables a wide range of applications. |
| ✔ FLICKER-FREE AND EFFICIENT: The high-quality and noiseless electronics of the transformer guarantee flicker-free operation of your LEDs and impress with an efficiency of 88% as well as a ripple and noise value of 400mVp-p. |
| ✔ TESTED SAFETY: The short-circuit-proof IP20 power supply unit has overvoltage and overload protection. The device is also CE/EN-certified (EN61347-2-13:2014 A1:2017,EN61347-1:2015 |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 12V |
| Output current: | 1,67A |
| Power: | 20W |
| Input voltage (min...max): | 198...264VAC |
| Efficiency: | 88% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |
| Length: | 103mm |
| Width: | 35,5mm |
| Height: | 16,5mm |
