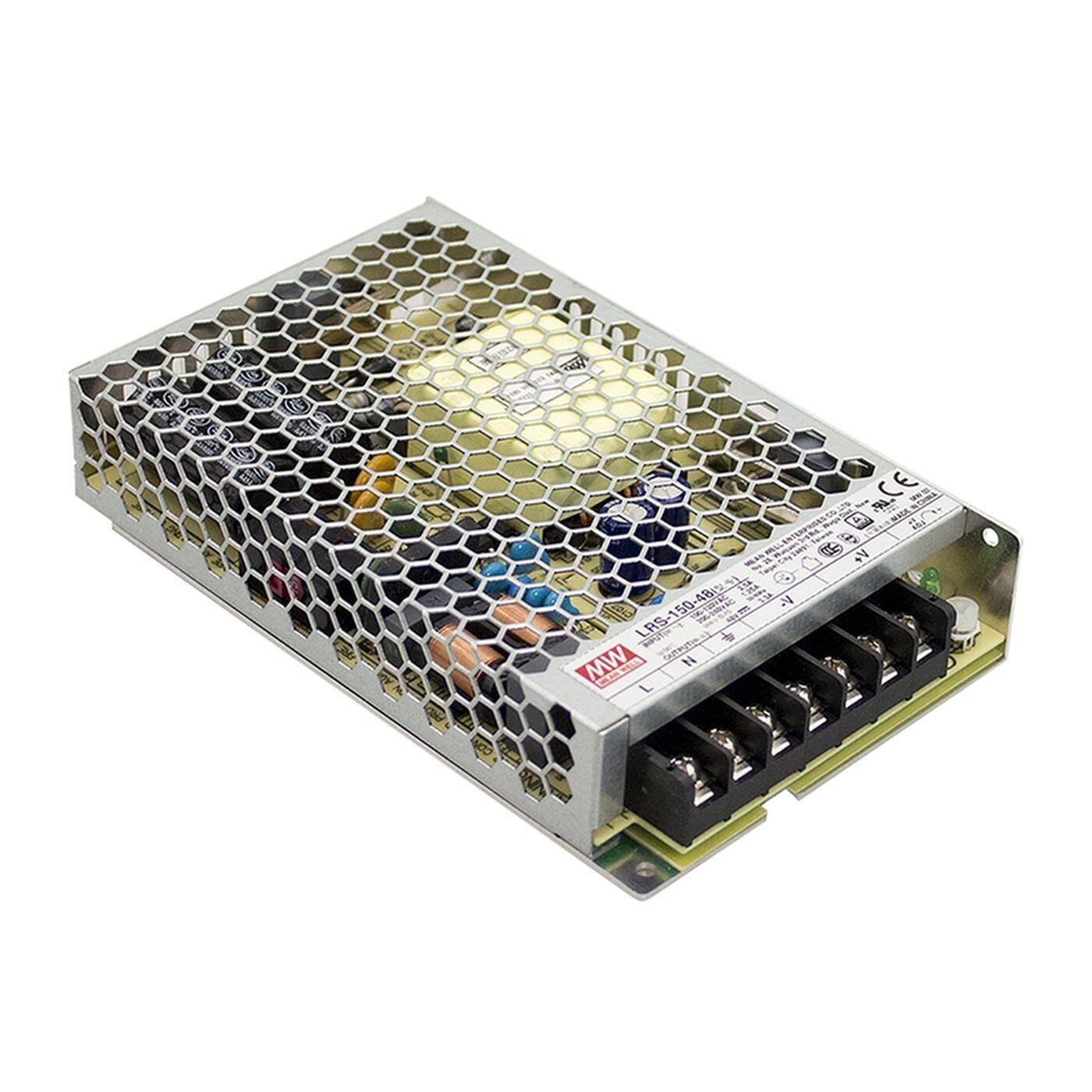

LRS-150-12 150W 12V 12,5A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-006139
Model:
LRS-150-12
Shipping weight:
0.48 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€20.00*
|
| 6 - 10 |
€19.60*
|
| 11 - 20 |
€19.20*
|
| 21 - 50 |
€19.00*
|
| 51 - 100 |
€18.80*
|
| From 101 |
€18.60*
|
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by current limiting, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ Low current consumption in load-free operation |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 12,5A |
| Power: | 150W |
| Input voltage (min...max): | 85...370VAC |
| Output voltage (min...max): | 10,2…13,8VDC |
| Efficiency: | 87,5% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

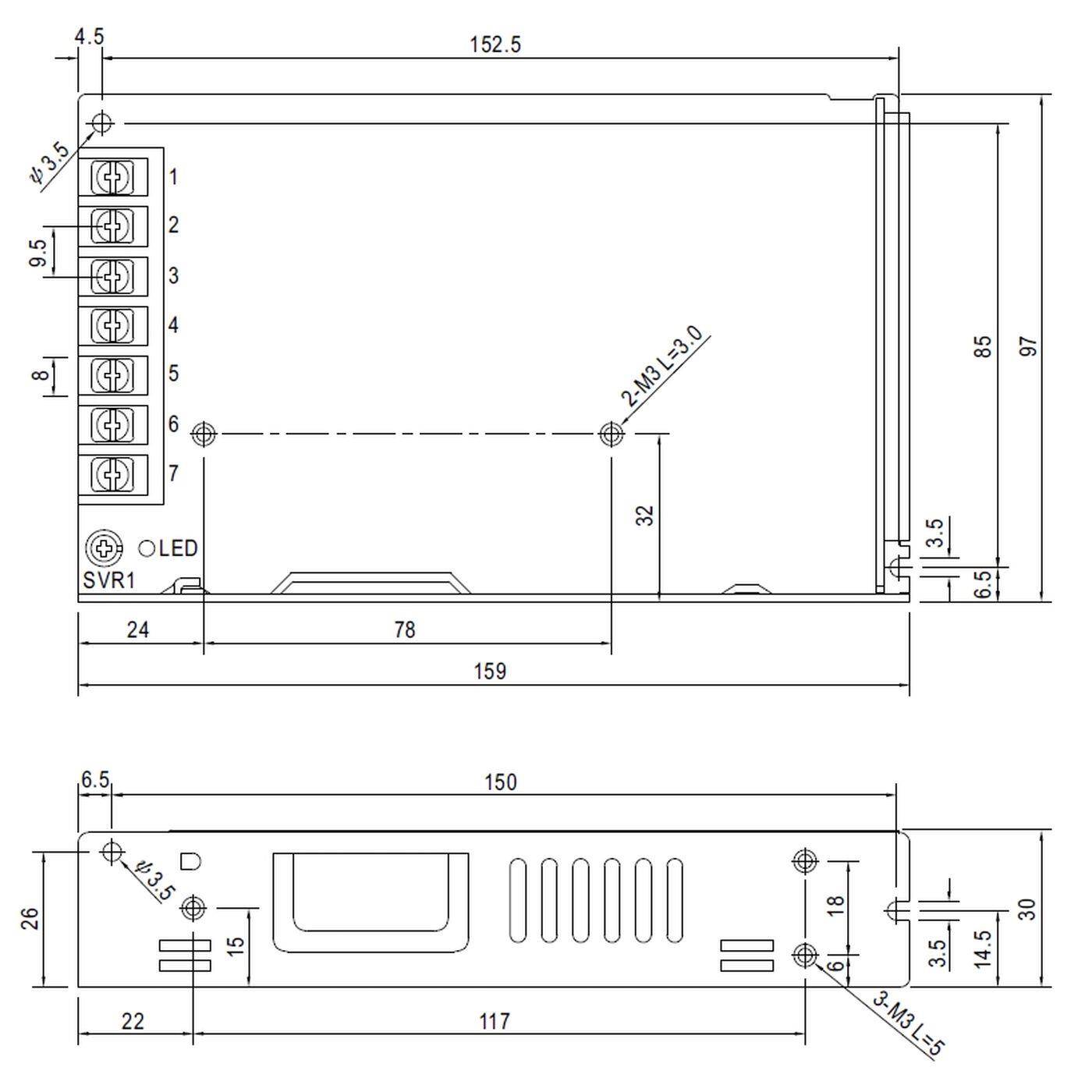

| Length: | 159mm |
| Width: | 97mm |
| Height: | 30mm |
