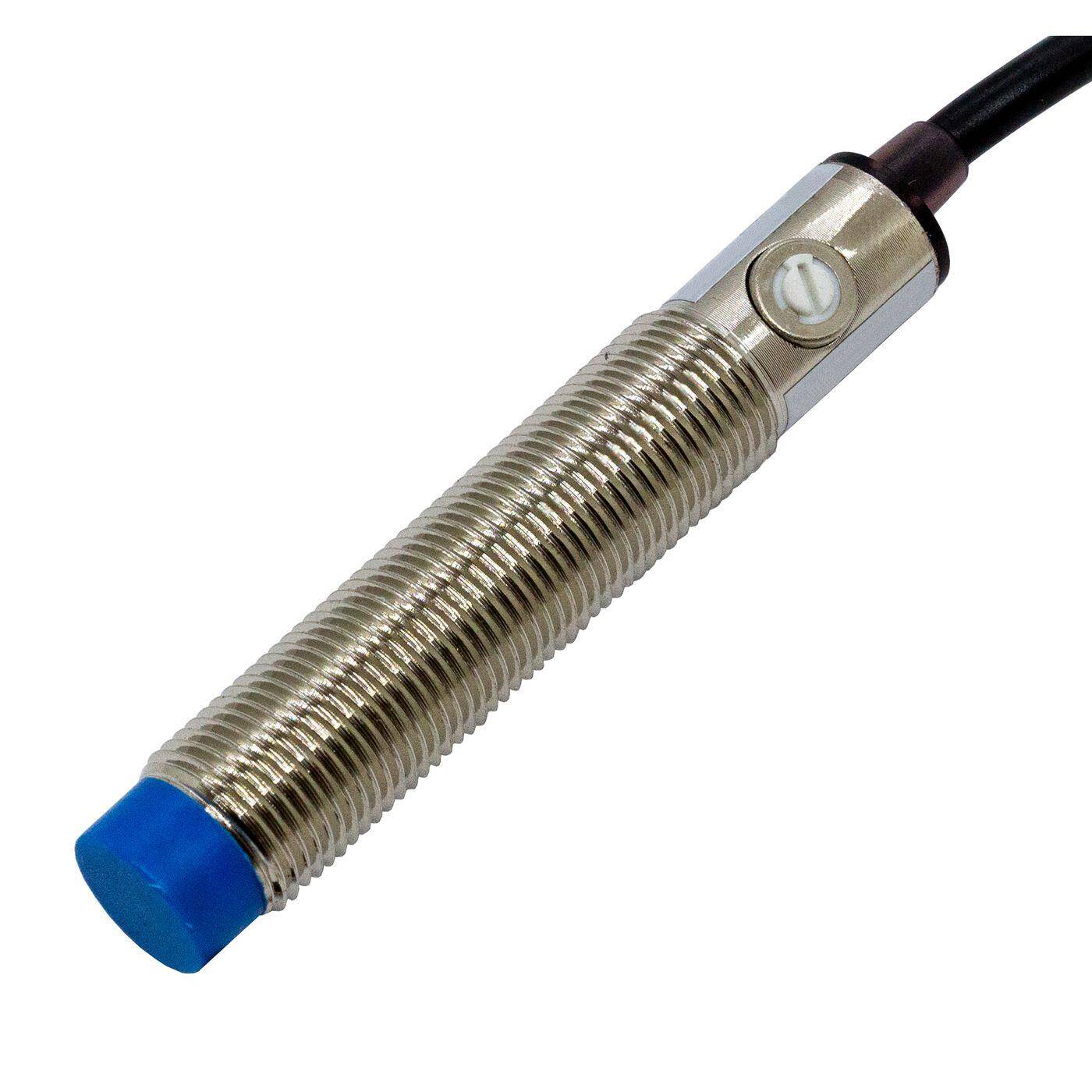

Proximity switch Capacitive 12mm M12 PNP NC contact 6...36V DC IP67 Sensor Brass nickel-plated -30...+65°C

Available, delivery time: 1-3 days

Article-No.: IT-008241
Shipping weight: 0.05 kg
Shipping Zone: 30
ROHS: Ja
Quantity Unit price
1 - 5
€13.00*
6 - 10
€12.74*
11 - 20
€12.48*
21 - 50
€12.35*
51 - 100
€12.22*
From 101
€12.09*

Prices incl. VAT plus shipping costs

Stk
aktueller
Bestand
Product description
Diameter12mm M12
Sensor technologyCapacitive
PolarityPNP
Switching contactNC contact
Voltage6...36V DC
Total length62mm
ConnectionCable 120cm (3 wire)
Detection range< 2mm
Switching current200mA
Insulation resistance50 MOhm
Protection classIP67
Casing MaterialBrass nickel-plated
Temperature range-30...+65°C
Technical specifications
Sensor technology: Capacitive
Polarity: PNP
Switching contact: NC contact
Voltage: 6...36V DC
Switching current: 200mA
Insulation resistance: 50 MOhm
Detection range: < 2mm
Temperature range: -30...+65°C
Protection class: IP67
Casing Material: Brass nickel-plated
Connection: Cable 120cm (3 wire)
Diameter: 12mm M12
Total length: 62mm
