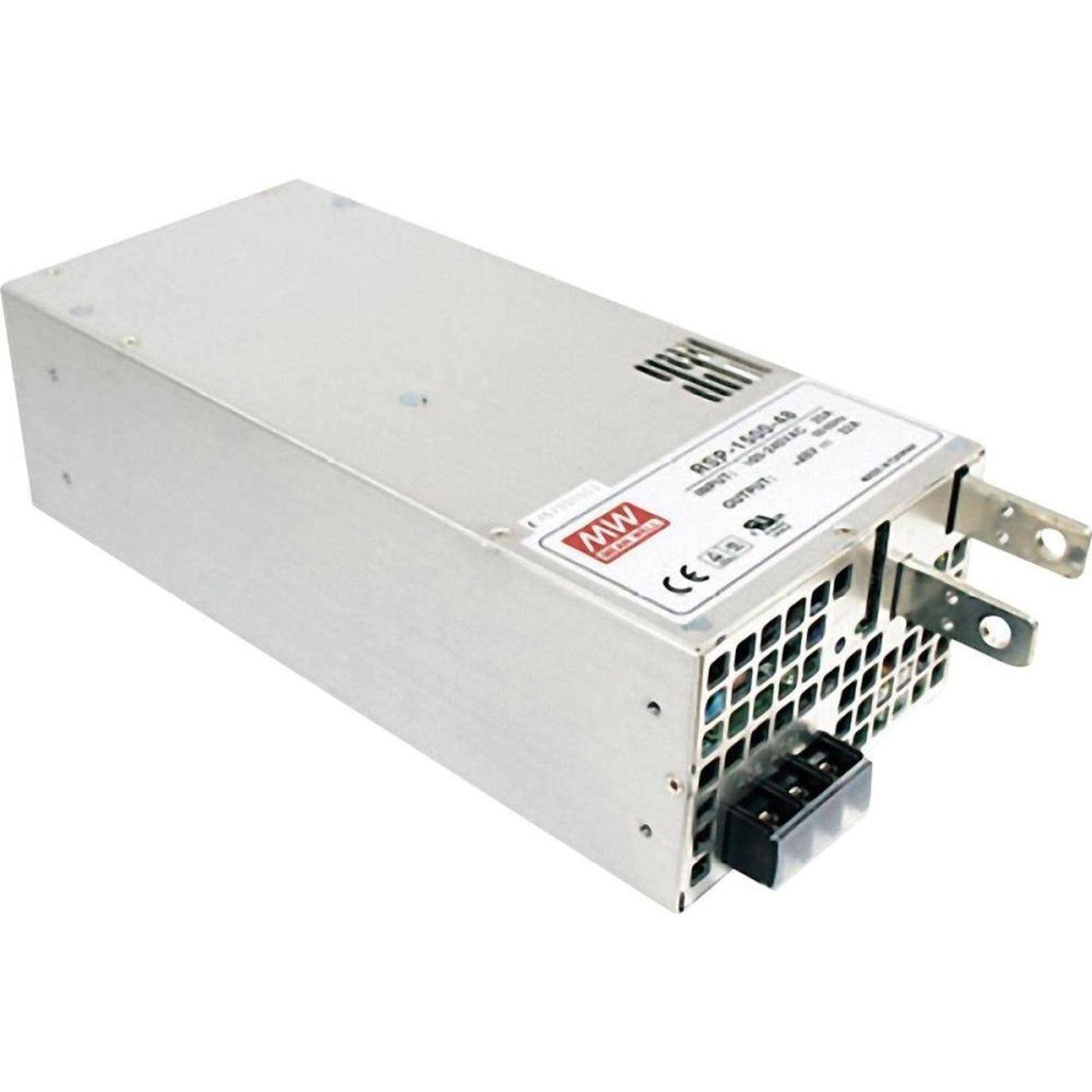

RSP-1500-12 1500W 12V 125A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-005576
Model:
RSP-1500-12
Shipping weight:
3 kg
Shipping Zone:
80
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 2 |
€460.00*
|
| 3 - 5 |
€455.40*
|
| 6 - 10 |
€450.80*
|
| 11 - 20 |
€446.20*
|
| 21 - 50 |
€446.20*
|
| From 51 |
€446.20*
|
Product description
| ✔ Closed design (case), Screw terminals |
| ✔ Universal input |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against short circuit, overload, overvoltage |
| ✔ built-in PFC circuit |
| ✔ Low overall height |
| ✔ Parallel function |
| ✔ active current distribution up to 6000W (3+1 power supplies) |
| ✔ Switching output voltage on and off via remote signal |
| ✔ Sensor connection for correct voltage at the load |
| ✔ Power-fail signal |
| ✔ internal auxiliary voltage 12V/0.1A |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 12V |
| Output current: | 125A |
| Power: | 1500W |
| Input voltage (min...max): | 90…264VAC |
| Output voltage (min...max): | 10...13,5VDC |
| Efficiency: | 87% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

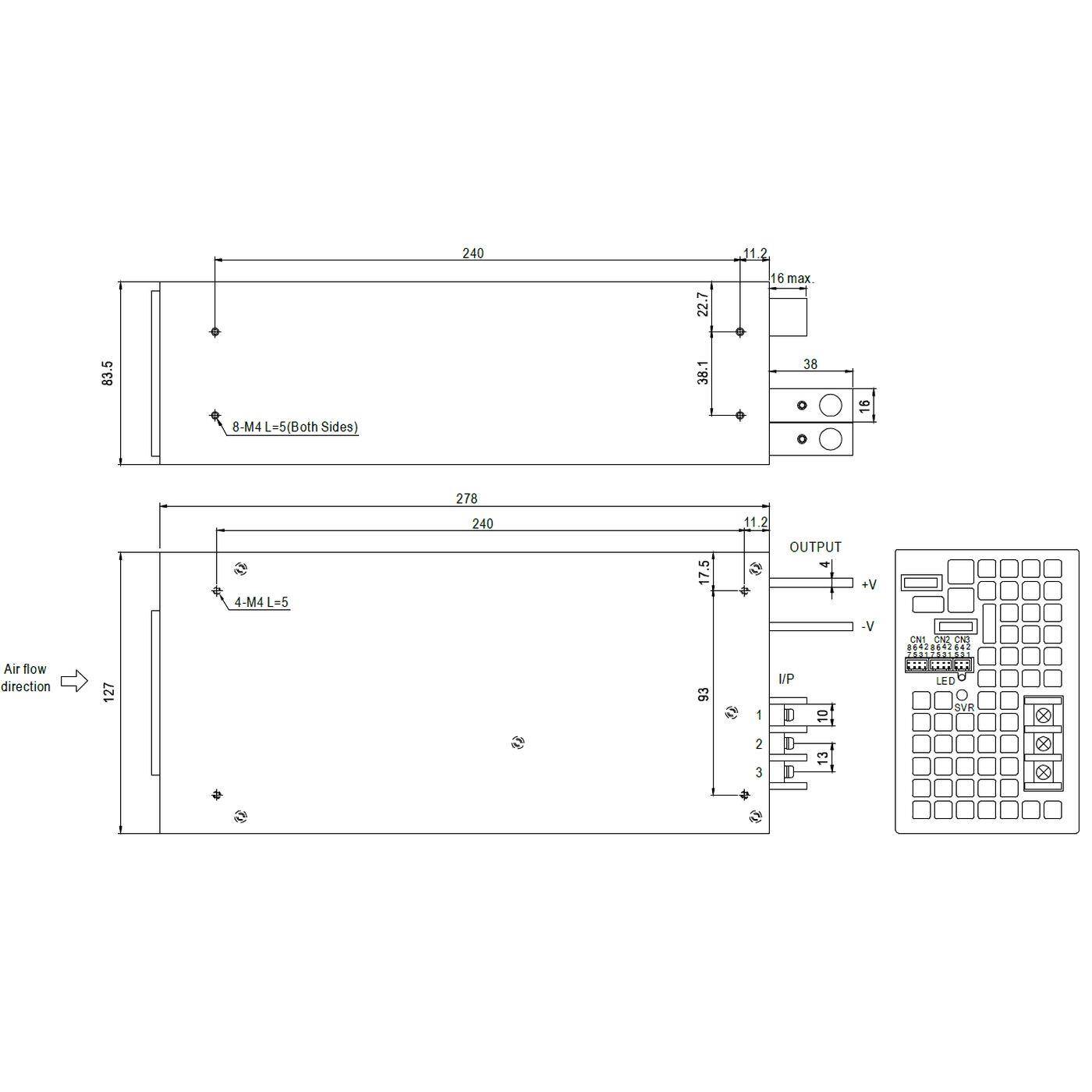

| Length: | 278mm |
| Width: | 127mm |
| Height: | 83,5mm |
