SLD15-500IL-ES 15W 500mA 17...30VDC Constant current LED power supply Driver Transformer Triac Dimmable
Available, delivery time: 1-3 days
Article-No.:
IT-007270
Model:
SLD15-500IL-ES
Shipping weight:
0.095 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€13.00*
|
| 6 - 10 |
€12.74*
|
| 11 - 20 |
€12.48*
|
| 21 - 50 |
€12.35*
|
| 51 - 100 |
€12.22*
|
| From 101 |
€12.09*
|
Product description
| ✔ Independent operating device |
| ✔ Protection class II, SELV output |
| ✔ flicker free design |
| ✔ Constant current |
| ✔ Plastic housing IP20 |
| ✔ protected against overload, short-circuit, overvoltage and thermal protection |
| ✔ EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. |
| ✔ for LED applications |
| ✔ 5 years warranty |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant current |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Constant current: | 500mA |
| Power: | 15W |
| Input voltage (min...max): | 198...264VAC |
| Output voltage (min...max): | 17...30VDC |
| Efficiency: | 80% |
| Dimmable: | Triac |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

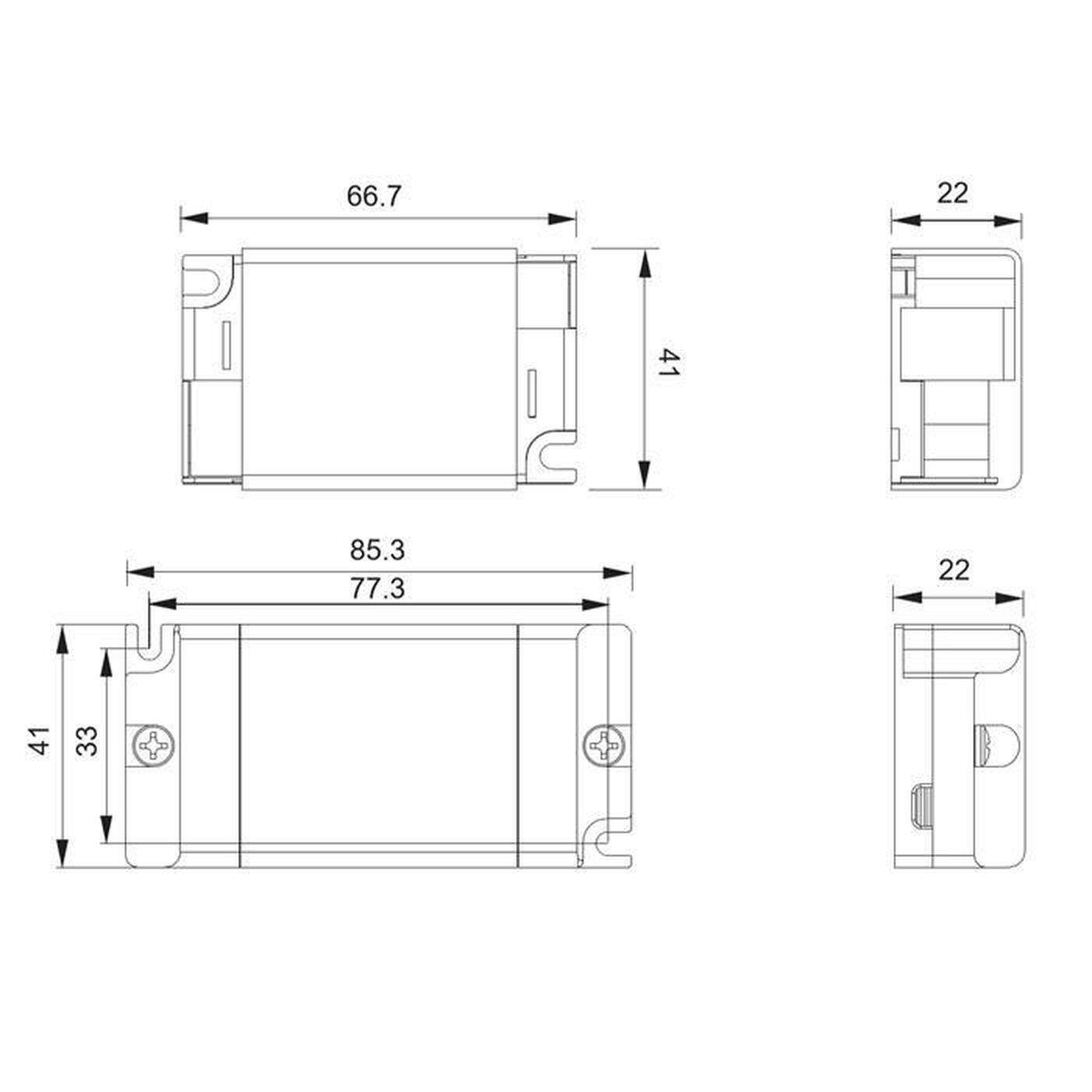

| Length: | 85mm |
| Width: | 41mm |
| Height: | 22mm |
