SLT100-24VL-E 100W 24V 4,17A LED power supply Transformer Driver
Available, delivery time: 1-3 days
Article-No.:
IT-007155
Model:
SLT100-24VL-E
Shipping weight:
0.316 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€35.00*
|
| 6 - 10 |
€34.65*
|
| 11 - 20 |
€34.30*
|
| 21 - 50 |
€33.95*
|
| 51 - 100 |
€33.95*
|
| From 101 |
€33.95*
|
Product description
| ✔ Constant voltage power supply |
| ✔ Independent operating device |
| ✔ Protection class II, SELV output |
| ✔ Constant voltage |
| ✔ Protection class: IP20 |
| ✔ protected against overload, short-circuit, overvoltage and thermal protection |
| ✔ EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. |
| ✔ LED power supply unit |
| ✔ 5 years warranty |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 24V |
| Output current: | 4,17A |
| Power: | 100W |
| Input voltage (min...max): | 220...240VAC |
| Efficiency: | 91,7% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

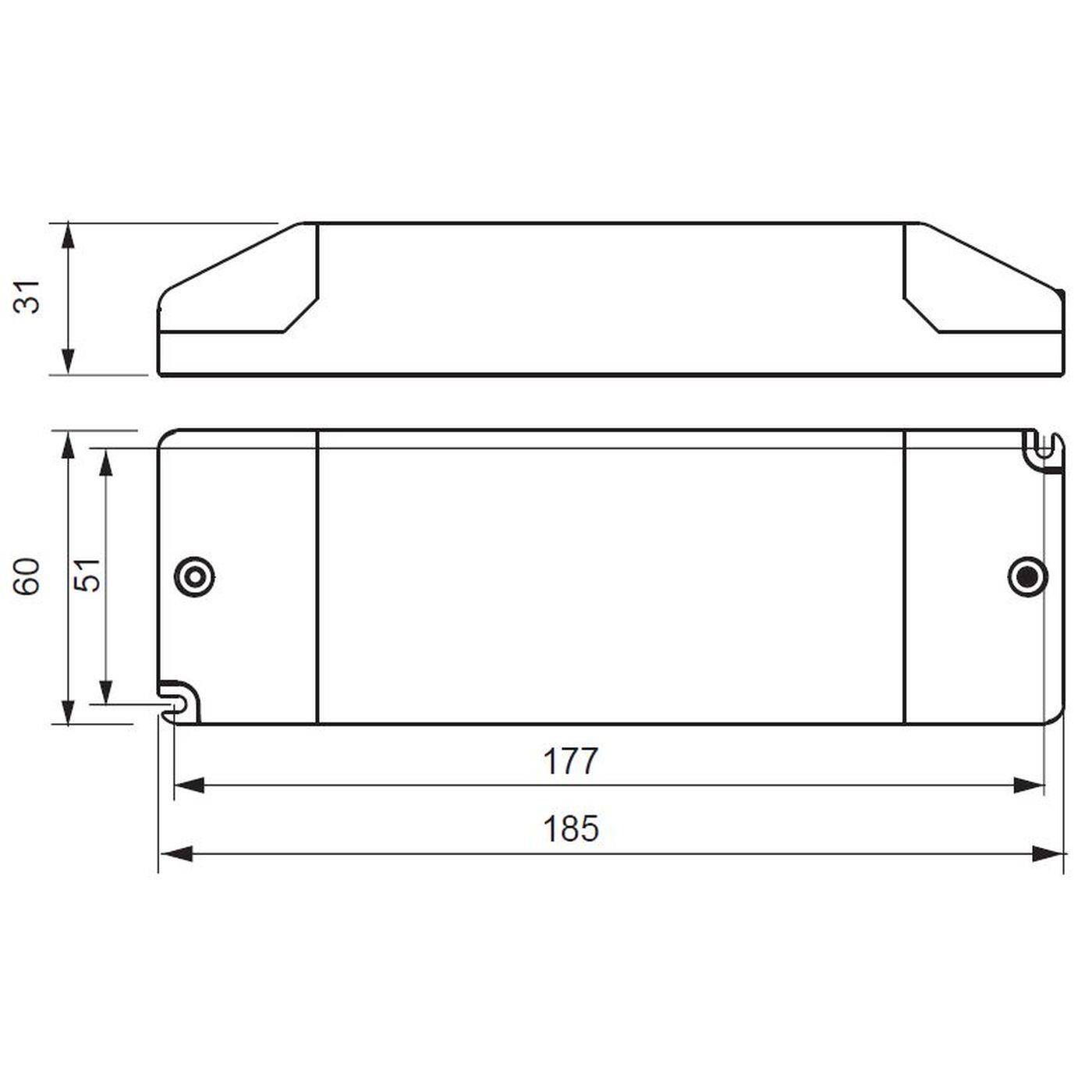

| Length: | 185mm |
| Width: | 60mm |
| Height: | 31mm |
