SLT30-24VLG-Es 30W 24V 1,25A LED power supply Transformer Driver
Available, delivery time: 1-3 days
Article-No.:
IT-007150
Model:
SLT30-24VLG-Es
Shipping weight:
0.2 kg
Shipping Zone:
50
ROHS:
Ja
Datasheet:
Product description
| ✔ Constant voltage power supply |
| ✔ Independent operating device |
| ✔ Protection class II, SELV output |
| ✔ Constant voltage |
| ✔ Protection class: IP20 |
| ✔ protected against overload, short-circuit, overvoltage and thermal protection |
| ✔ EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 etc. |
| ✔ LED power supply unit |
| ✔ 5 years warranty |
Technical specifications
| Power supply type: | LED power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 230V |
| Output voltage: | 24V |
| Output current: | 1,25A |
| Power: | 30W |
| Input voltage (min...max): | 220...240VAC |
| Efficiency: | 85% |
| Protection class: | IP20 |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

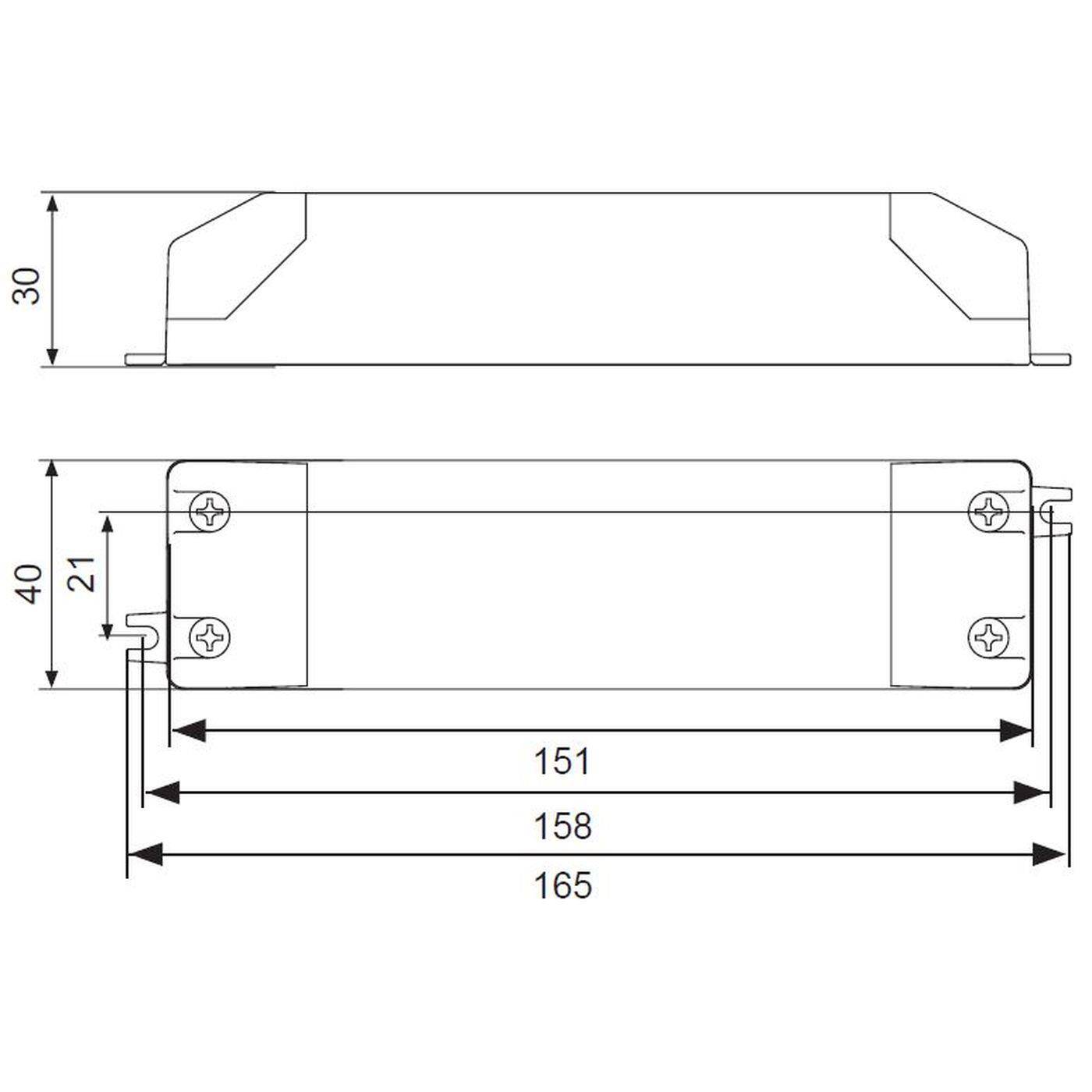

| Length: | 165mm |
| Width: | 40mm |
| Height: | 30mm |
