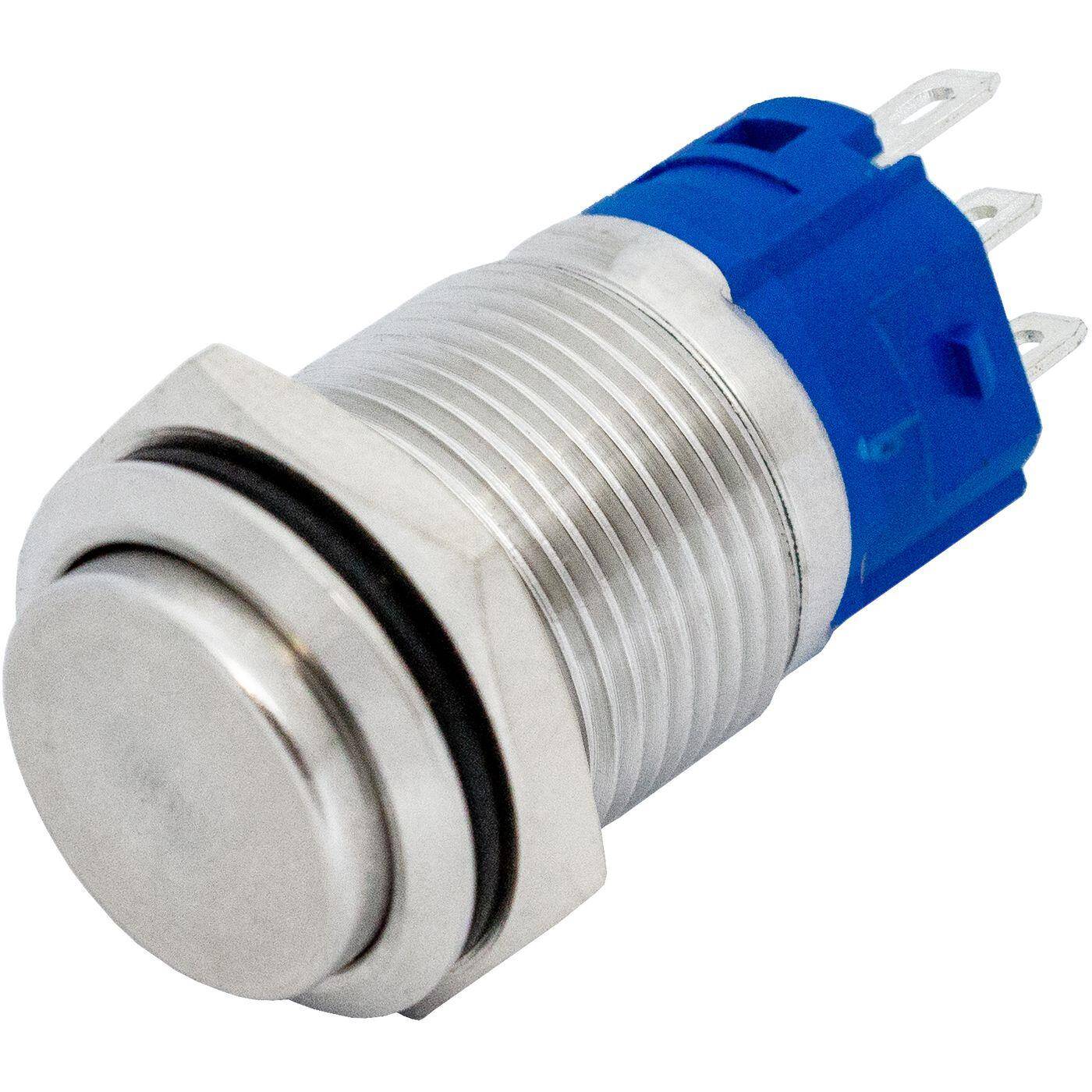

Stainless steel Pressure switch raised Ø16mm IP65 2,8x0,5mm Pins 250V 3A Vandal-proof

Available, delivery time: 1-3 days

Article-No.: IT-008350
Shipping weight: 0.012 kg
Shipping Zone: 50
ROHS: Ja
Quantity Unit price
1 - 10
€3.60*
11 - 20
€3.53*
21 - 50
€3.46*
51 - 100
€3.42*
From 101
€3.38*

Prices incl. VAT plus shipping costs

Stk
aktueller
Bestand
Product description
Switch TypeStainless steel Pressure switch

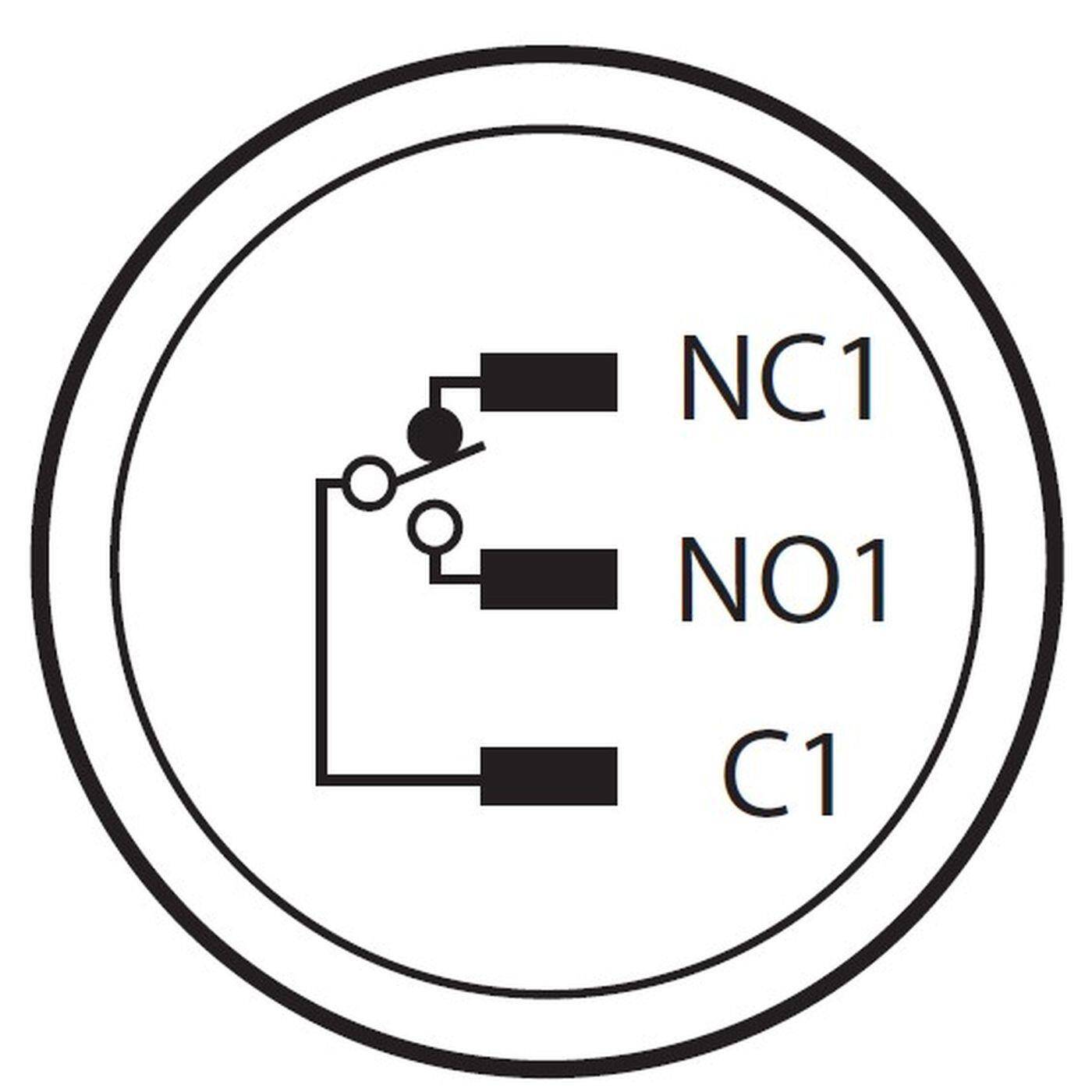

VersionNC contact + NO contact -> Changeover contact
Voltage250V
Current3A
Head shaperaised
ColourSilver
Number of poles1
External dimensionsØ18x28mm
Installation dimensionØ16mm
Thread length15mm
MaterialStainless steel
Connection2,8x0,5mm Pins
Installation depth33mm
Protection classIP65
Operating temperature-25...+70°C
Special featureVandal-proof
Technical specifications
Switch Type: Stainless steel Pressure switch
Version: Changeover contact
Voltage: 250V
Current: 3A
Head shape: raised
Colour: Silver
Number of poles: 1
External dimensions: Ø18x28mm
Installation dimension: Ø16mm
Thread length: 15mm
Material: Stainless steel
LED Shape: no LED
Connection: 2,8x0,5mm Pins
Installation depth: 33mm
Protection class: IP65
Operating temperature: -25...+70°C
Special feature: Vandal-proof
