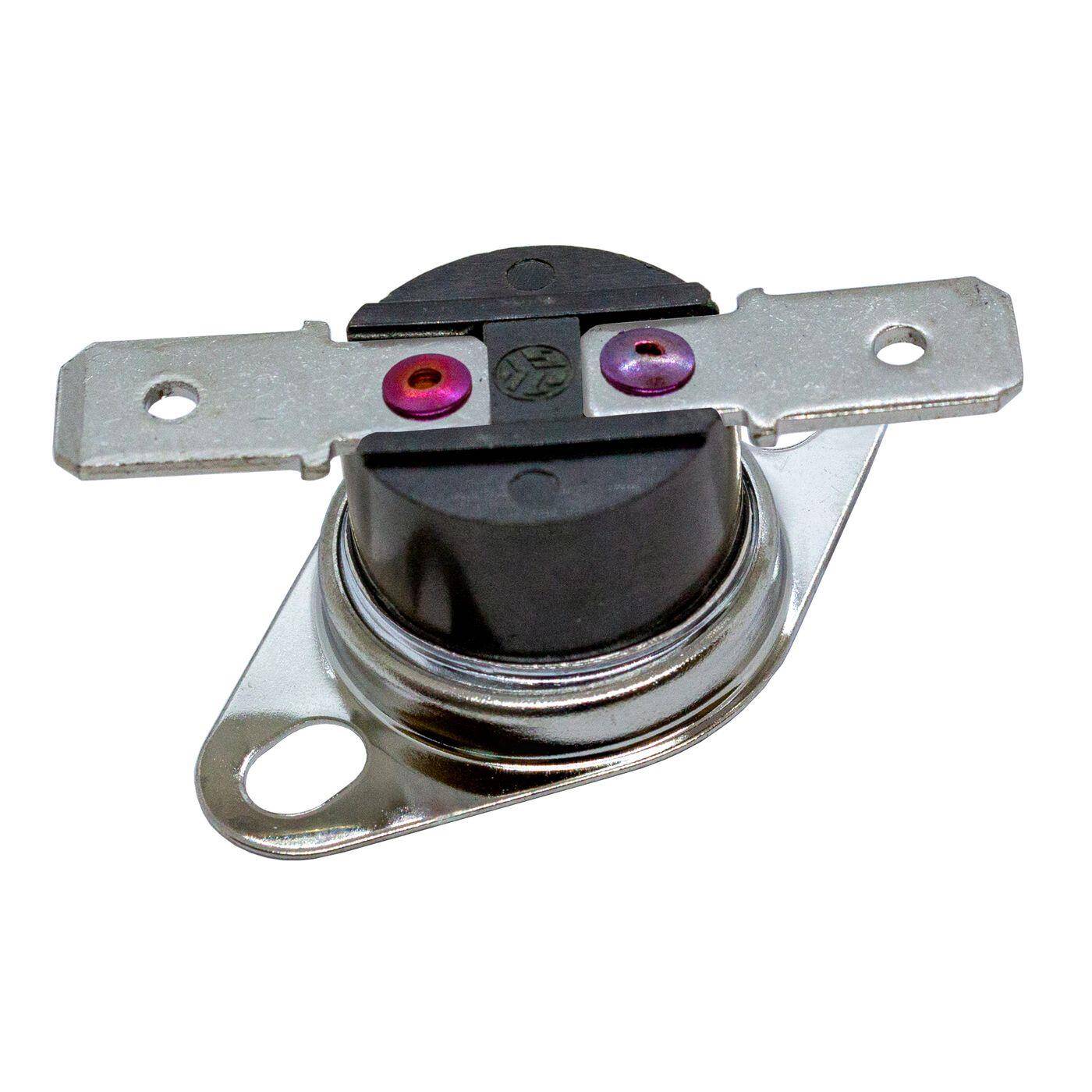

Thermal switch 40°C NC contact 250V 10A Temperature switch thermostat KSD301 Bimetal Thermal protection
Available, delivery time: 1-3 days
Article-No.:
IT-008304
Shipping weight:
0.006 kg
Shipping Zone:
30
ROHS:
Ja
Product description
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Exzellente Abdichtungs- und Isolationseigenschaften |
| ✔ Min. Schrumpftemperatur: +70°C |
| ✔ Min. Temperatur zur vollständigen Schrumpfung: +120°C |
| ✔ UV resistant |
Technical specifications
| Type: | Temperature switch KSD301 |
|---|---|
| Switching contact: | NC contact |
| Switching temperature: | 40°C |
| Switching temperature Tolerance: | ± 5°C |
| Reset temperature: | 25°C |
| Reset temperature Tolerance: | ± 8°C |
| Maximum load capacity AC: | 250V 10A |
| Contact resistance: | 50mOhm |
| Material Casing: | Metal & Plastic |
| Dimensions Casing: | d15x12mm |
| Connection: | Flat plug 6,3x0,8mm |
