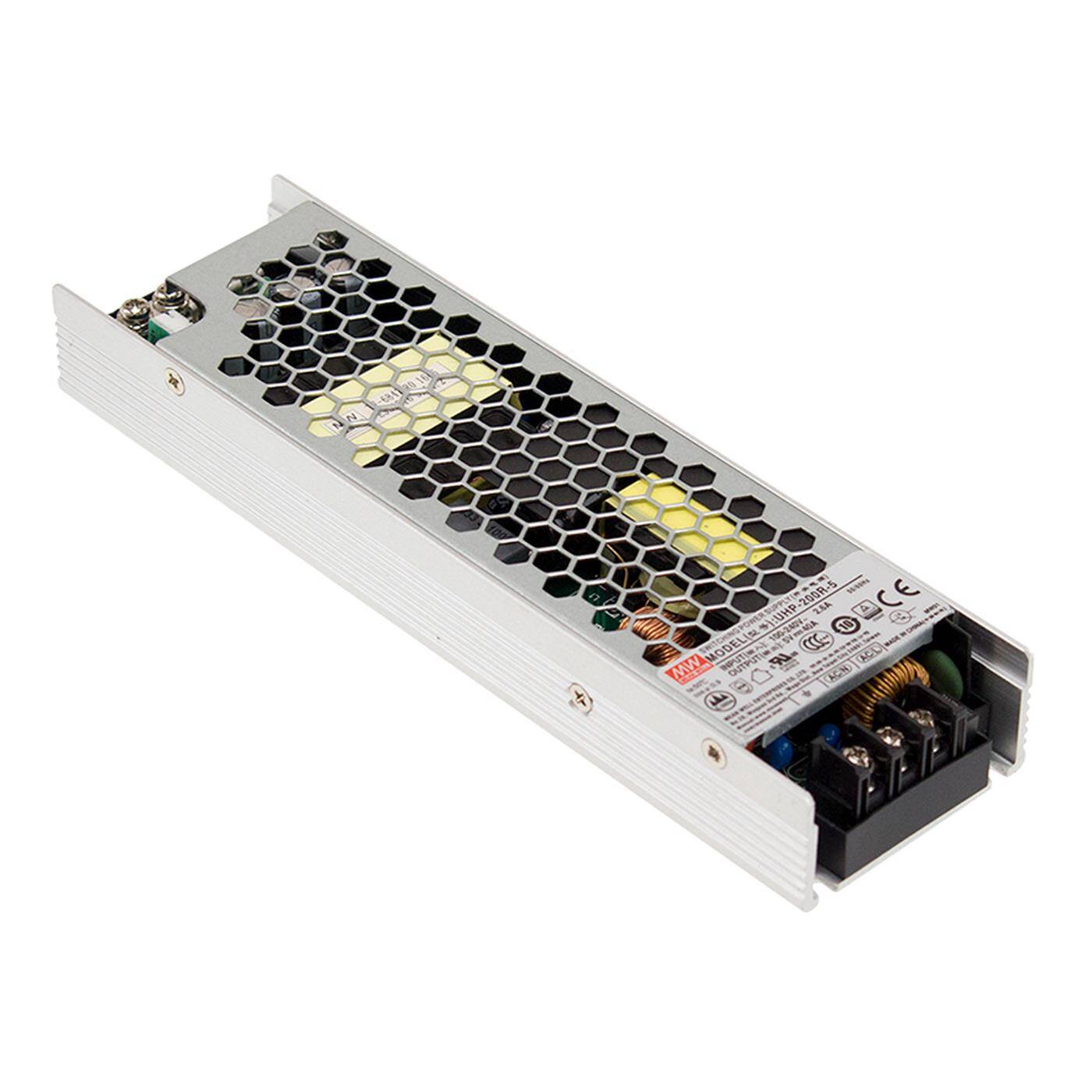

UHP-200-36 201,6W 36V 5,6A Industrial power supply
Available, delivery time: 1-3 days
Article-No.:
IT-009553
Model:
UHP-200-36
Shipping weight:
0.47 kg
Shipping Zone:
60
ROHS:
Ja
Datasheet:
| Quantity | Unit price |
|---|---|
| 1 - 5 |
€44.46*
|
| 6 - 10 |
€43.57*
|
| 11 - 20 |
€42.68*
|
| 21 - 50 |
€42.24*
|
| 51 - 100 |
€41.79*
|
| From 101 |
€41.35*
|
Product description
| ✔ closed design (U-bracket) |
| ✔ Universal input |
| ✔ built-in PFC circuit |
| ✔ overload protection by switching off, auto recovery |
| ✔ protected against overload, overvoltage and overtemperature |
| ✔ EMC standards: EN 55032 Class B, EN 55014 |
| ✔ Safety standards: UL 62368-1, EN 62368-1, EN 60335-1 |
| ✔ 3-year manufacturer's warranty |
Technical specifications
| Power supply type: | Industrial power supply |
|---|---|
| Stabilisation: | Constant voltage |
| Topology: | AC/DC Converter |
| Input voltage: | 115V / 230V (Universal) |
| Output voltage: | 36V |
| Output current: | 5,6A |
| Power: | 201,6W |
| Input voltage (min...max): | 90…264VAC |
| Output voltage (min...max): | 34,2…37,8VDC |
| Efficiency: | 94% |
| Input connection: | Screw terminals |
| Connection Output: | Screw terminals |

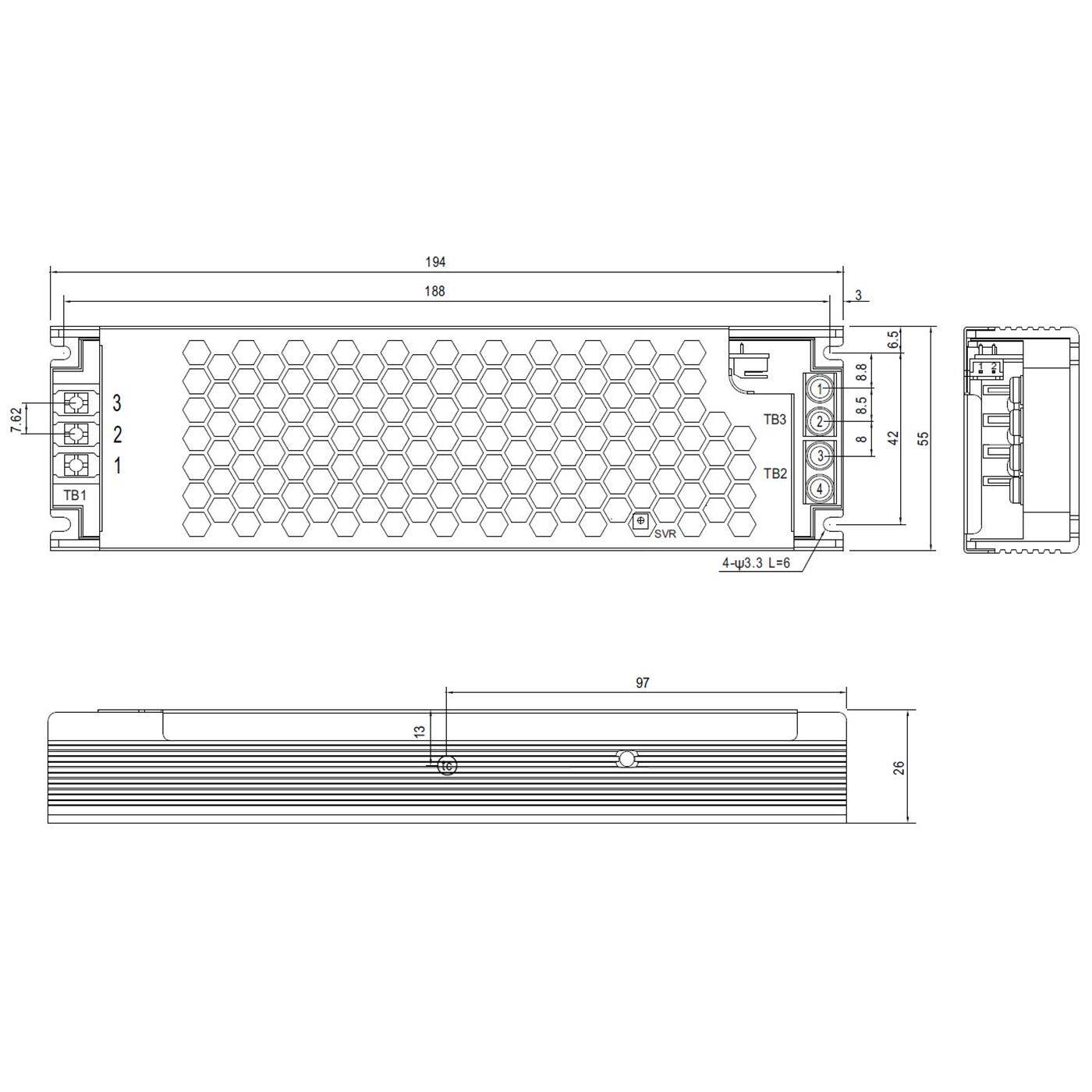

| Length: | 194mm |
| Width: | 55mm |
| Height: | 26mm |
